Highmast Projector Pole
Highmast system is used in high
projector poles to prevent any operational accidents and to ease the
maintenance of lighting equipments at the top of the projector pole. In
highmast pole, operator do not climb through the pole to the top platform,
instead projector carrying platform move down with included raising and
lowering mechanism. By the use of infra remote or cable remote control
panel, projectors can be lowered or raised. This system is needed for gain
staff time, security
-
Height: 12 m -
45 m
-
Steel pole formed by modular poles - flange or slip joint connected.
-
Anchor Bolt and Base flange for foundation connection.
-
Remote control Panel.
-
1-side, 2-side, 3-side, 4 side, 6-side, 8 side lighting.
-
Hot dip galvanized, or/over paint.
-
Wind Design acc. to Eurocode, ASCE or TIA/EIA 222 F.
-
Flasher.
-
Lightning.
Suitable for lighting
-
Open
area.
-
Airport.
-
Parking
Lots.
-
Harbour.
-
Highways.
-
Factories.
-
Construction Site.
-
Cross Roads.
-
Stadiums.
Contact us for
technical drawing and design.
Highmast Poles

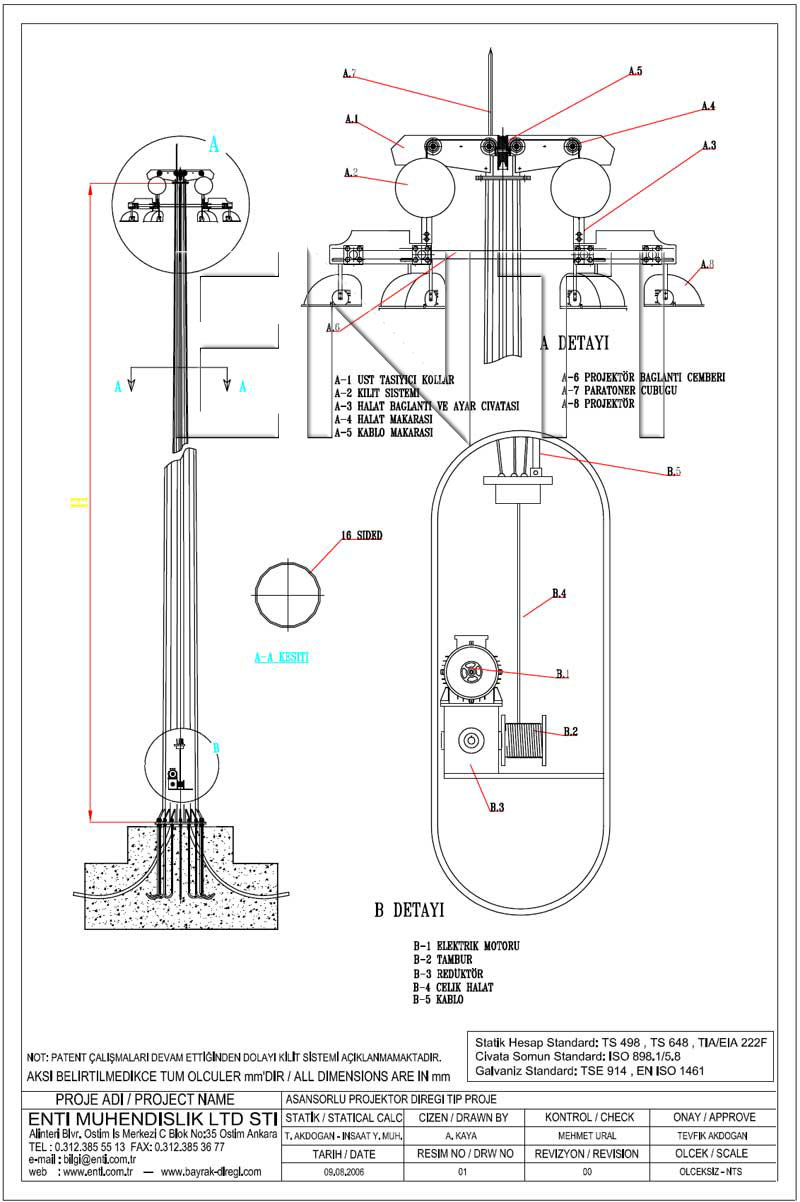

Highmast raising and lowering mechanism
Highmast; Lighting system lowered for maintenance and
raised for lighting.
|
|
Mechanism
|
|
The platform moves through pole, can be
lowered and raised.
|
|

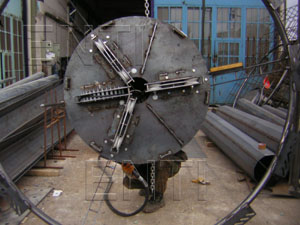

| Latching Mechanism |
| Projector carrying platform latches
automatic to the top and so there is no loads on the ropes after
latching. |
|
| Flasher |
| Flasher for airplanes at the top of the
pole. |
|
| Lightning |
| Lightning at the top. |
|
|
